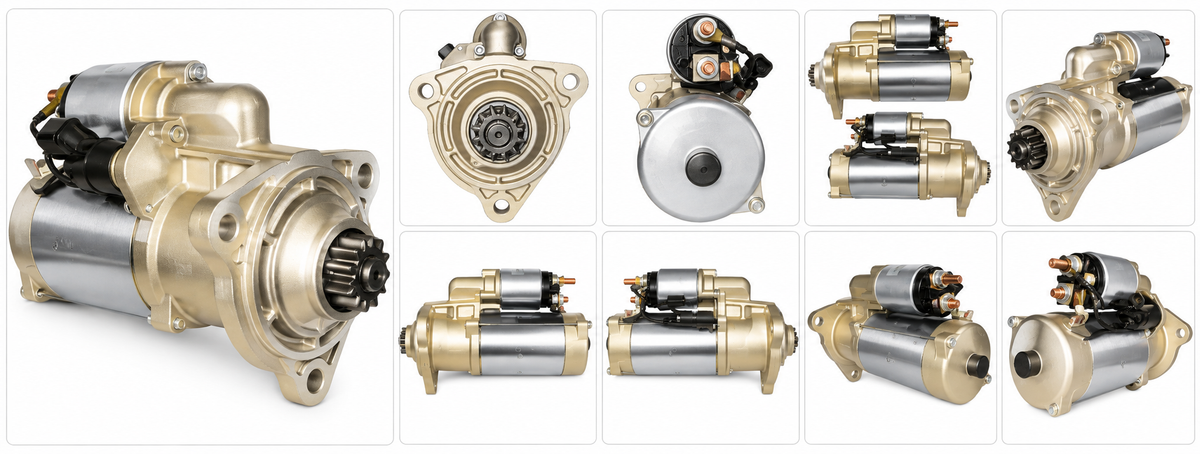

DAF HEF95-L 24V Heavy-Duty Starter Motor – 5.5kW
DAF HEF95-L 24V Heavy-Duty Starter Motor – 5.5kW
DAF HEF95-L 24V Heavy-Duty Starter Motor – 5.5kW
Product Overview
Heavy-duty 24V starter motor designed for selected DAF trucks, Bova coaches and Solaris bus applications. The Bosch-system HEF95-L uses a planetary gear-reduction drive and is rated at 5.5kW.
Technical Specifications
| Specification | Details |
|---|---|
| System | Bosch |
| Model / Series | HEF95-L |
| Voltage | 24V |
| Power Rating | 5.5kW |
| Pinion Gear | 12 Teeth |
| Rotation | Clockwise (CW) |
| Drive Type | PLGR – Planetary Gear Reduction |
| Mounting | 3 Mounting Holes |
Vehicle Compatibility
DAF CF85: FA 85.360 / 85.410 / 85.460 / 85.510; FAC 85.360 / 85.380 / 85.410 / 85.460 / 85.510; FAD, FAG, FAN and FAQ variants in 85.360 / 85.410 / 85.460 / 85.510 configurations.
DAF XF105: FAD 105.510; FAK, FAR, FAS, FT, FTG, FTM, FTR, FTS and FTT variants in selected 105.410, 105.460 and 105.510 configurations.
DAF XF95: XF95; FTG 95.430; FTM 95.380 and 95.430.
Bova Magiq: MHD122, MHD131 Magnum, MHD139 Magnum and MHD148 Magnum.
Bova Synergy: SDD130, SDD141 and SSD141.
Solaris Vacanza: Vacanza 12 and Vacanza 13.
Quick Part Reference
24V • 5.5kW • 12-Tooth • CW Rotation • HEF95-L • PLGR • 3-Hole Mounting
