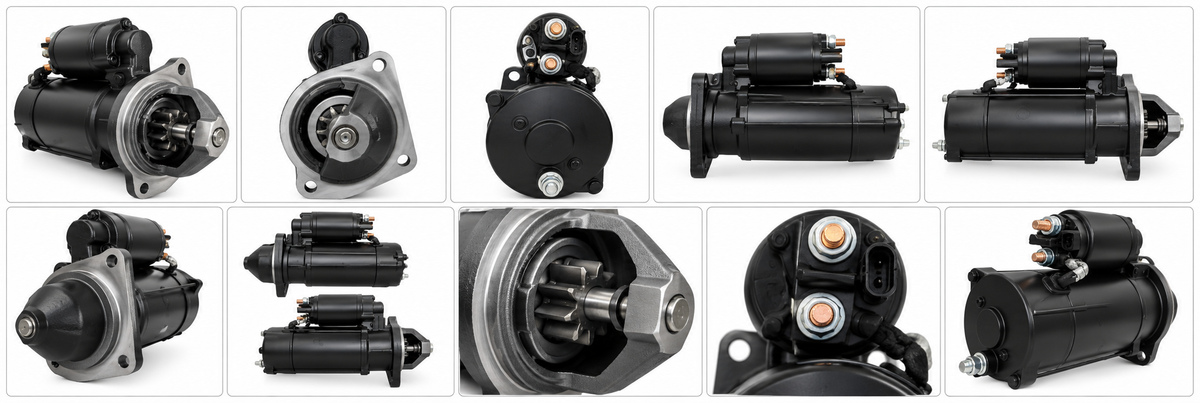

Heavy-Duty 12V Starter Motor – JCB & Industrial Equipment
Heavy-Duty 12V Starter Motor – JCB & Industrial Equipment
Heavy-Duty 12V Starter Motor – JCB & Industrial Equipment
Product Summary
Heavy-duty 12V reduction-gear starter motor designed for JCB machinery and a wide range of construction, industrial and material-handling equipment. The AZF-type unit provides 4.2kW starting power, an 11-tooth pinion and clockwise rotation.
| Technical Detail | Specification |
|---|---|
| Product Type | Complete Starter Motor |
| Voltage | 12V |
| Power Output | 4.2kW |
| Starter Series | AZF |
| Pinion Gear | 11 Teeth |
| Rotation | Clockwise (CW) |
| Mounting Holes | 3 |
| Drive System | Reduction Gear |
| System Reference | Iskra / Mahle |
| Mounting Diameter | 127mm |
| Flywheel Depth | 24mm |
| Flange Diameter | 89mm |
| Pinion Diameter | 41mm |
| Mounting Bore | 10.9mm |
| Mounting Position | Right |
| Connection Angle | 119° |
| Mass Terminal | 31 |
Compatible Engine Types
444 Series: 444 • 444G • 444G-TC1 • 444G-TC2 • 444G-TCA • 444T • 444TA • 444TA41 • 444TCA
448 Series: 448 • 448G • 448G-TCA • 448I • 448TA4I-108V1 • 448TA4I • 448TAI • 448TG-60 • 448TG
Dieselmax: Dieselmax TCA • JCB Dieselmax
Ecomax: Ecomax 444 • Ecomax 448 • Ecomax • Ecomax TCAE-55 • Ecomax TCAE-55F • Ecomax TCAE • JCB Ecomax
Additional Engine Families: EPA • JCB 444 • QSB • SLB • TC • TC63 • TC68 • TCA.74 • TCA74 • TCAE
Equipment Applications
Suitable for selected JCB backhoe loaders, skid-steer loaders, wheel loaders, Loadalls, telehandlers, forklifts, excavators, generators, rollers and compactors, as well as selected GEAX, Mecalac, MOSA, NC Engineering, Palazzani, Sidermeccanica and Titan equipment listed in the application data above.
