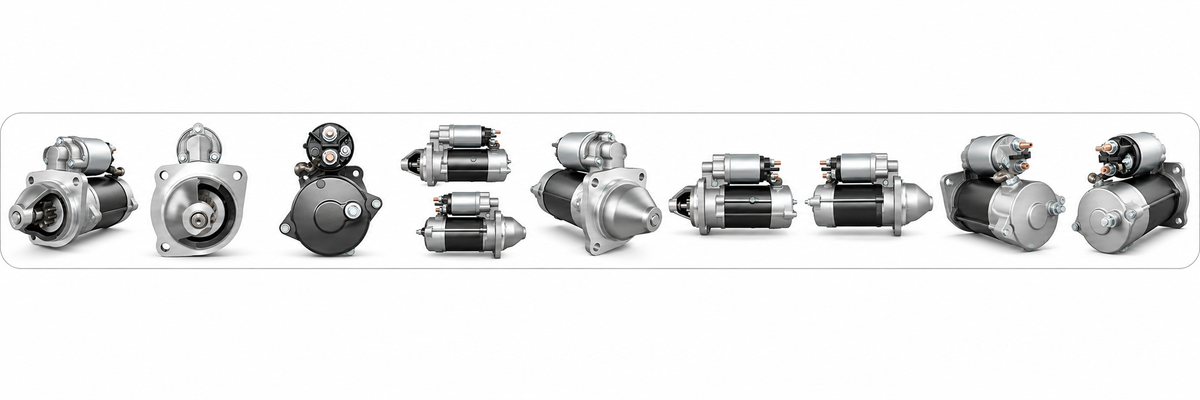

Starter Motor – 12V 3.2kW | 10-Tooth | AZE Type
Starter Motor – 12V 3.2kW | 10-Tooth | AZE Type
Starter Motor – 12V 3.2kW | 10-Tooth | AZE Type
A heavy-duty 12V starter motor designed for a wide range of agricultural, construction and material-handling equipment using compatible Perkins-type engine applications. The unit features a 3.2kW output, 10-tooth pinion and reduction-gear drive.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Complete Starter Motor |
| Voltage | 12V |
| Rated Power | 3.2kW |
| Pinion Teeth | 10 |
| Rotation | Clockwise (CW) |
| Starter Type / Model | AZE |
| Mounting Holes | 3 |
| Mounting Pattern Diameter | 127 mm |
| Mounting Bore Diameter | 10.9 mm |
| Flywheel Depth | 32.5 mm |
| Flange Diameter | 89 mm |
| Pinion Outside Diameter | 39.6 mm |
| Gear Module | 3.175 mm |
| Distance Across Two Teeth | 15.42 mm |
| Mounting Position | Left |
| Connection Angle | -42° |
| Ground / Mass Terminal | 31 |
| Drive Configuration | Reduction Gear |
| Reference | MS 399 / MS3990F |
Equipment & Vehicle Compatibility
To make the listing much cleaner, I would group the applications by manufacturer instead of using one very long continuous list.
AGCO / Agricultural Equipment
AGCO and AGCO tractor applications.
ArmaTrac / Erkunt
Compatible applications include 1004, 1104, 1504E, 602E, 604E, 702/702E, 704/704E/704E+, 752E, 802, 804/804.4/804.4E, 852/852E, 854/854E/854E+, and 904E variants. Engine sizes shown across the applications include 3.4L and 4.4L.
Basak
2080, 2090, 2100, 2110 and 2110S tractor applications, including listed 4.0L and 4.4L variants. Also listed for ST17.30 and ST9.35 forklift/telehandler applications.
Bobcat
Suitable for listed skid-steer and telescopic-handler applications including T2256, T2566, T35100, T35100L, T35100SL, T35120, T35120L, T35120SL, T3571, T3571L, T40140, T40170, TL360, TL470, TL470HF, TL470HP, TR40250, TR45190 and TR50210 variants.
Farmtrac
Listed applications include 675, 675DT, 685DT, 690DT, 7100DT and 7110DT models, including specified 4.4L diesel variants.
Hattat
Extensive compatibility across A-, B-, C- and T-series tractors, including A55, A60, A65, A70, A80, A90, A100 and A110 variants, plus B3050/B3055/B3065/B3080, C3050/C3055/C3065/C3080 and T4065/T4075/T4080/T4090/T4100/T4110 applications. Listed engine capacities include 3.0L, 3.3L, 3.4L, 4.0L and 4.4L depending on model.
Hidromek
HMK 102B, HMK 102S, HMX 102B, HMX 102B Supra and HMX 102S 4.4L backhoe-loader applications.
Manitou
Listed for various forklift and telehandler models including MHT780, MHT860, MI60H, MI70H, MRT 1440, MRT 1640, MRT 1840, MSI 40T, MSI 50T, MT 1135, MT 1135H/HA, MT 1335H/HA, MT 1440/A/H/HA, MT 1840 and MT 835/H.
Massey Ferguson
MF290, MF3425, MF3435, MF3445 and MF3455.
Perkins Engine Applications
Listed compatibility includes Perkins 1006 6.6L, 1103 3.3L, 1104 4.4L, 3.3L, 3.4L, 4.4L, 6.6L, 854 3.4L, A4248 and T4248 engine applications.
Ursus
11054 4.4L, 11054 Power 4.4L, C3102 4.4L, C3110 4.4L, C380M 4.4L and C382 4.4L tractor applications.
